Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display

Place of Origin : Guangdong, China

MOQ : 1

Price : CN¥1,808.15-2,484.47

Input Interface : 2 X HDMI 2.0/2 X DP 1.2

Input Pixel Frequency : 600MHz

Output Interface : 9 X HDMI 1.3

Output Pixel Frequency : 165MHz

Audio Output : HDMI follow out, 3.5mm audio splitter

Control Mode : Pushbutton, infrared remote, RS232

Package Dimensions : 360mm x 215mm x 70mm

Package Weight : 1.8KG

Input Resolution : 4K60

Output Resolution : 1080P60

Splicing Modes : 3x3, 2x4, 7x1

Switching Type : Seamless

FPGA Process : 28nm

Cooling Method : Internal conduction

Material : Metal

Contact Now

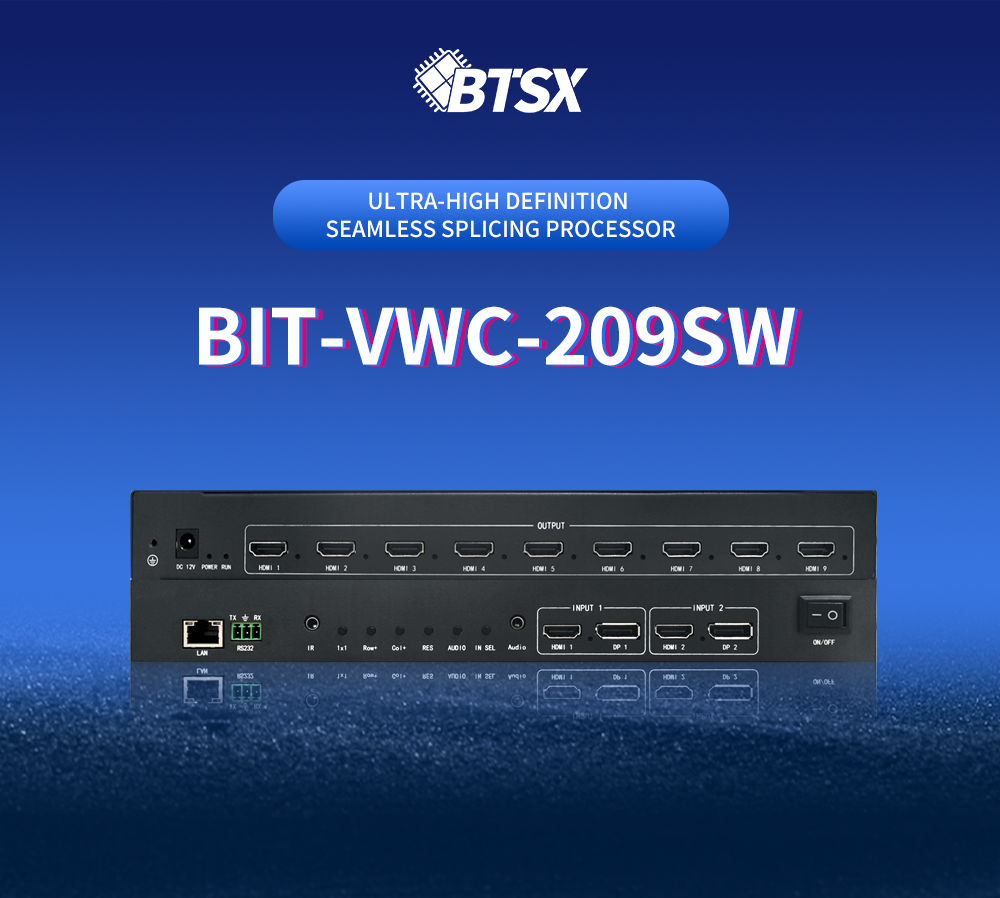

VWC-209SW Seamless Splicing Processor

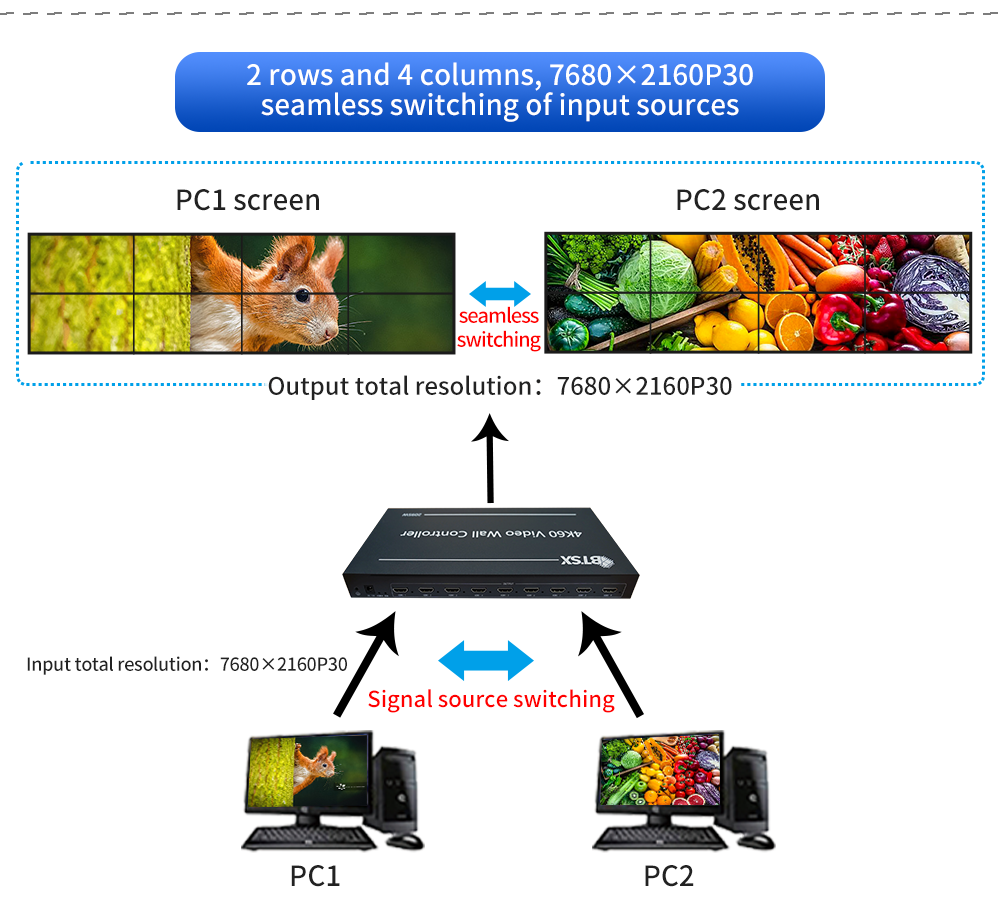

The VWC-209SW is a professional point-to-point seamless splicing processor designed for multi-screen display applications. Featuring 2-way 4K60 input and 9-way 1080P60 output, this hardware processor enables flexible display configurations including 3×3, 2×4, 7×1, and other custom layouts with seamless signal switching capabilities.
Key Features
  • 2×4K60 HDMI/DP inputs and 9×1080P HDMI outputs
  • Point-to-point seamless splicing across 9 screens
  • Horizontal and vertical splicing without stretching or distortion
  • Seamless switching between 2-channel signals
  • Support for multiple input resolutions with seamless switching
  • Multiple control options: key, infrared remote, and RS232
  • Low power consumption with conduction cooling design
  • 28nm process high-end programmable FPGA chip
  • Full hardware real-time processing with zero latency
  • Compatible with computers, Android boxes, game consoles, and other input sources
Applications
Ideal for ultra-high-definition video surveillance, large screen walls, retail advertising displays, exhibition display screens, and various industrial applications requiring reliable multi-screen presentation.
Technical Specifications
Input Interfaces 2× HDMI/DP (4K60)
Output Interfaces 9× HDMI (1080P60)
Splicing Modes 3×3, 2×4, 7×1, and custom configurations
Processing FPGA-based real-time hardware processing
Control Methods Key, infrared remote, RS232
Chip Technology 28nm process programmable FPGA
Product Images
Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display
Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display
Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display
Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display
Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display
Bitvisus Video Wall Controller with 2X4K60 Input 9X1080P Output FPGA Real-Time Hardware for Seamless Multi-Screen Display
